TV Outlet
MiniCompact Serie

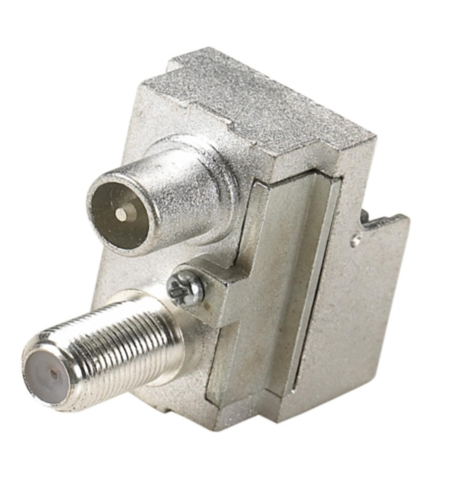

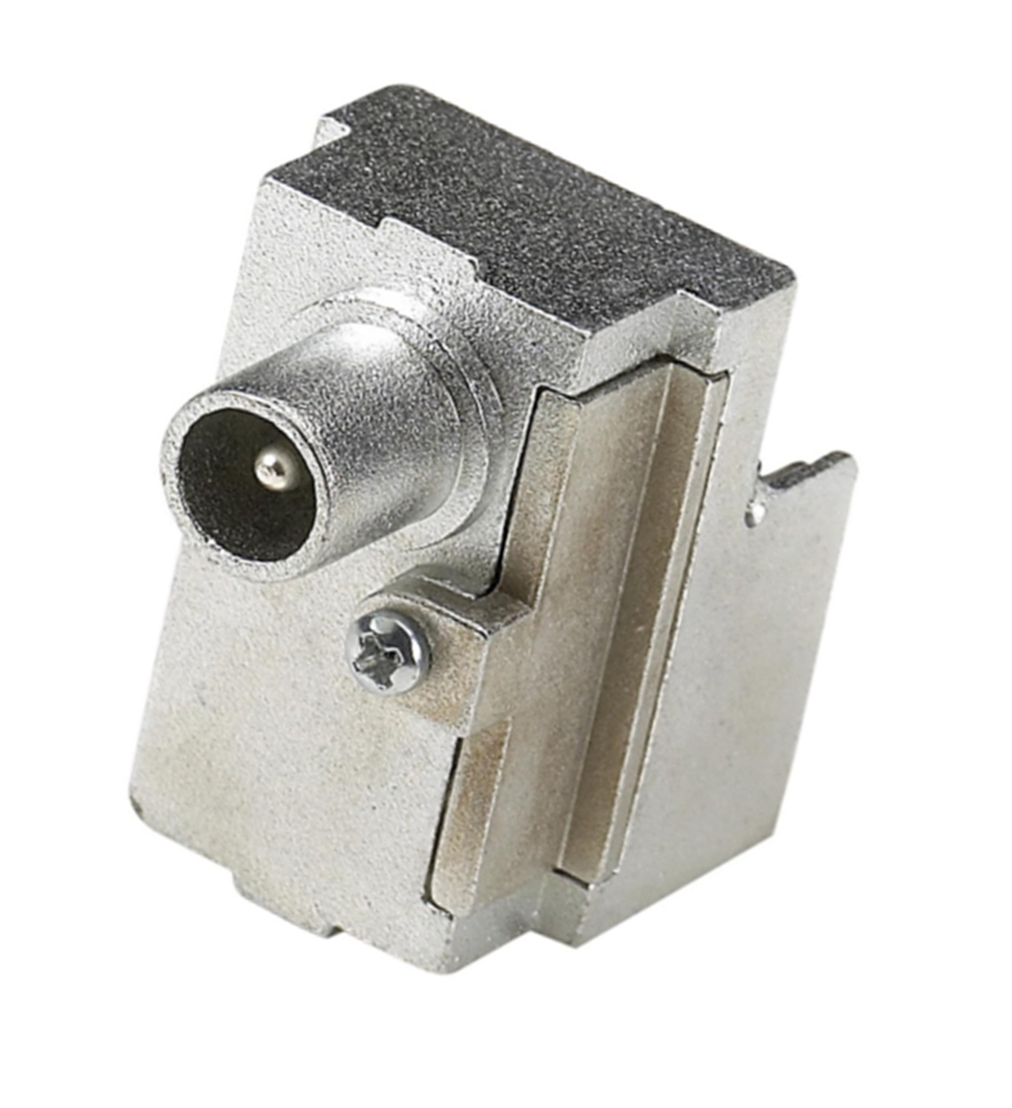

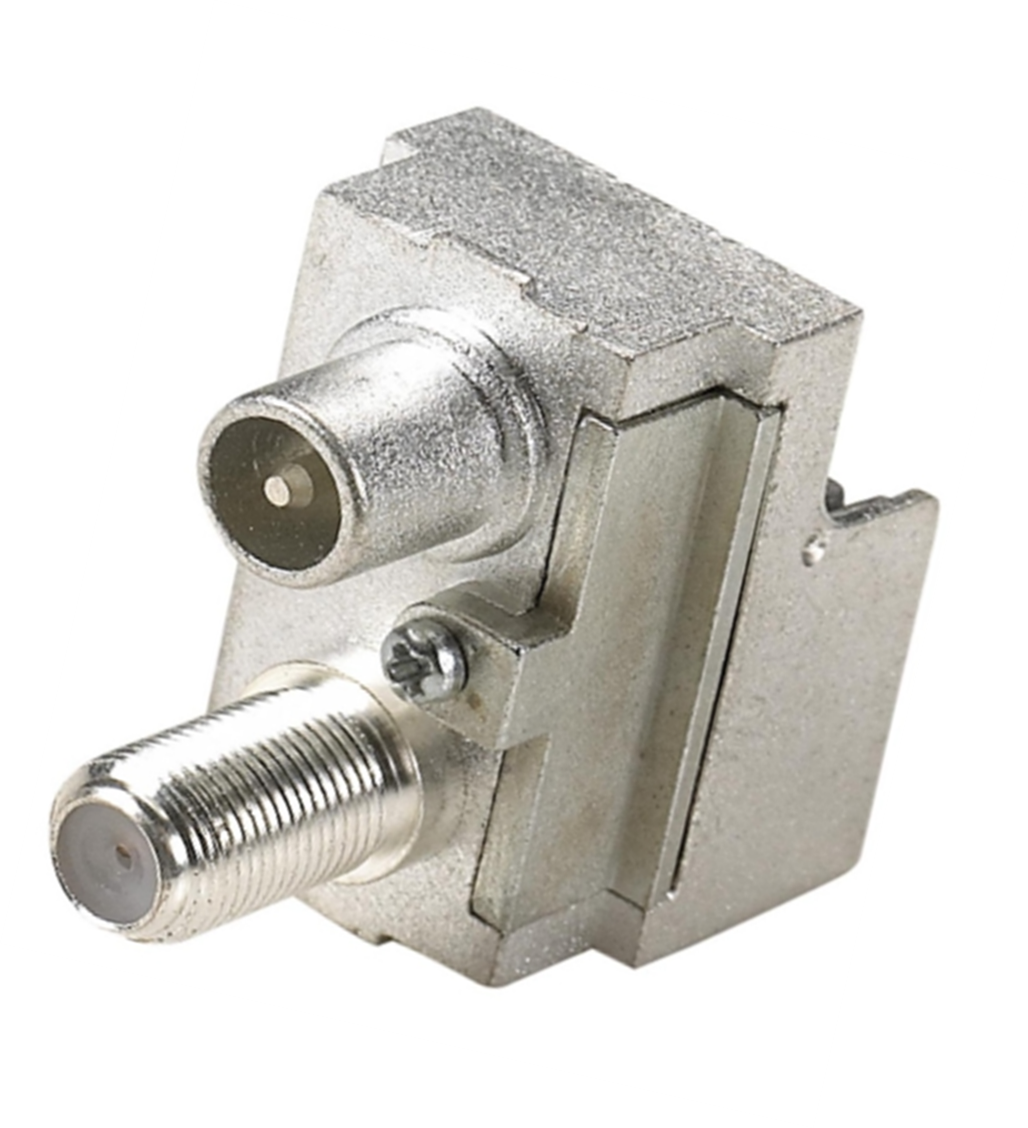

The TV/SAT outlets of the miniCOMPACT serie are made of die casting, have the coaxial cable fixed via a screw for the central hot pole and a cover and have internal silver contacts for better conductivity. They are divided into two families: mono-connector and demix. The single-connector models are divided into IEC connector and F connector.
The peculiarity that distinguishes the series is inside: there are no cold junction points (typical spring/pin pair) to join the two parts that make up the outlets, but only welds are used which are made through the slit on the side. This feature protects against probable false contacts, premature aging in areas close to the sea (presence of saltiness) and guarantees uniformity of operation for the entire useful life of the outlet.
Technical Specifications
· Die cast single-piece chassis
· Minimum space occupation
· High shielding efficiency >90dB
· Ultra wide bandwidth 4-2350MHz
· High linearity and matching across the entire band
· Silver contacts
· Suitable for digital and analogue TV and SAT signals
· Adaptable to the main outlet adaptors on the market
Download
TV Outlet
FullCompact Serie

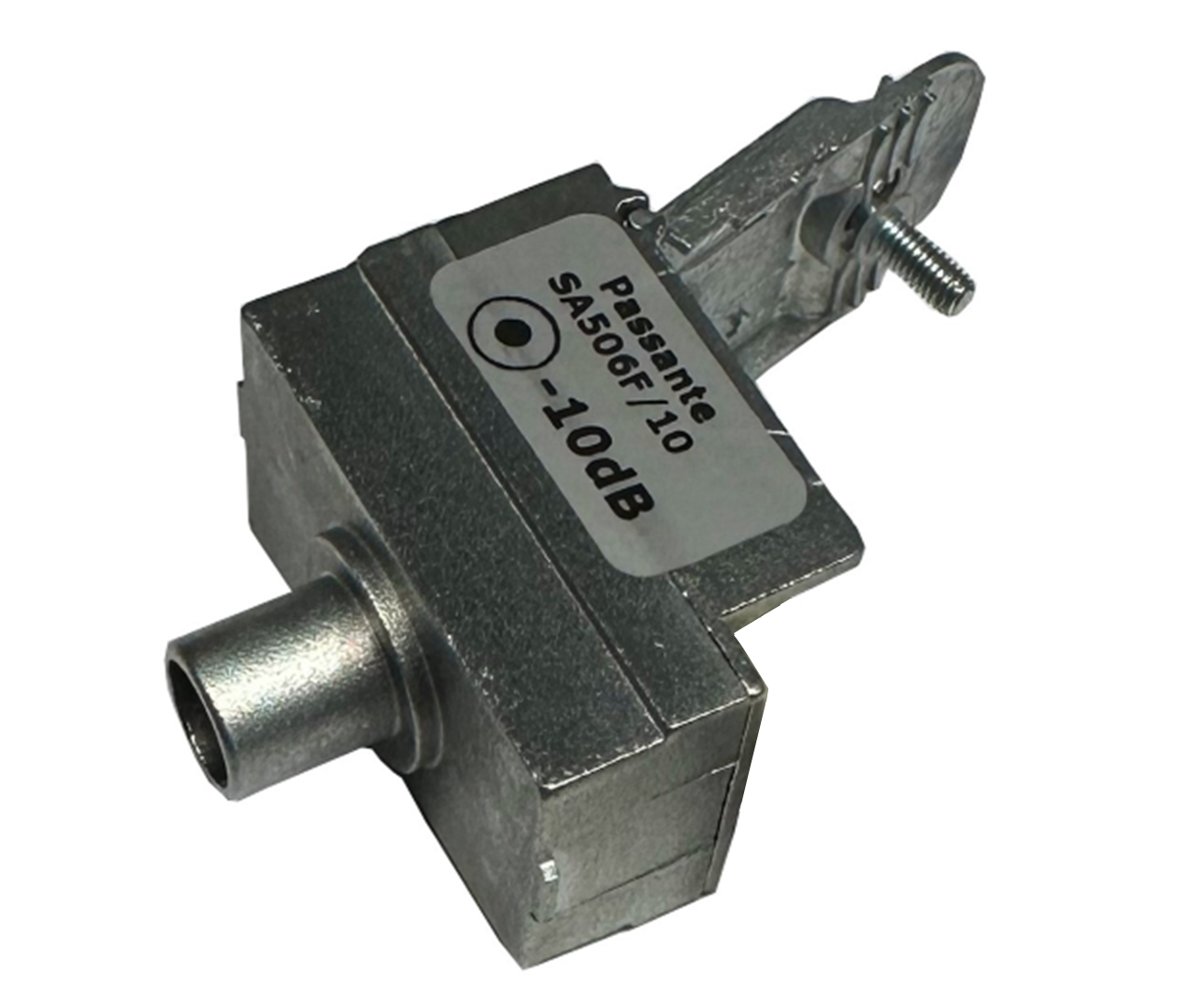

The TV outlets of the FullCOMPACT serie are made of die casting and have the coaxial cable fixed by rapid insertion into phosphor bronze contacts, which makes the connection procedures within each individual housing unit much quicker. The models are single-connector: IEC male and F female.
The mechanics are made according to Class A standards, guaranteeing unsurpassed shielding, while the central position of the connector makes the series universal and compatible with every series of outlets adaptors on the market.
Technical Specifications
· Die cast single-piece chassis
· Quick cable insertion
· Central connector
· Minimum space occupation
· High shielding efficiency >90dB
· Ultra wide bandwidth 4-2350MHz
· High linearity and matching across the entire band
· Created for digital TV and SAT signals
· Adaptable to all outlets adaptors on the market
Download
TV Outlet
ecoCompact Serie
The ecoCOMPACT adapter (AC090F) is made of die casting and guarantees high shielding efficiency. It occupies a single module, has two threaded holes to be able to screw, according to your needs, a single AC091F or AC092F adapter, or both. The kit obtained must be grafted onto the TA outlets adaptors series.
Technical Specifications
· Direct outlet
· AC090F die cast chassis
· Customizing connectors
· Ultra-low space occupation
· Ultra wide bandwidth 4-2350MHz
· High linearity and matching across the entire band
· Created for digital TV and SAT signals
· Adaptable to the main outlet adaptors on the market
Download
