Splitters and Taps
Compact Serie
The PIF series of splitters and the DSAT series of taps are made entirely of tinned die casting and have the coaxial cable fixed via a door clamp and screw for the central hot pole.

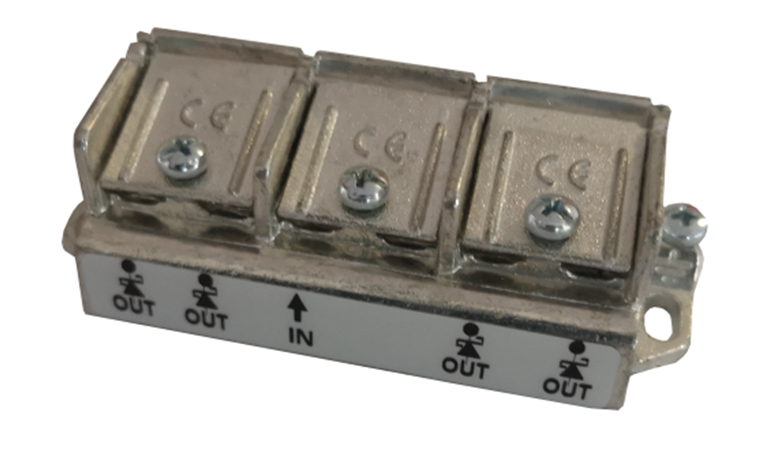

Splitters have schottky diodes on all outputs (2, 3, 4 and 5 depending on the model) to minimize the voltage drop, making them ideal for SCR, dCSS distribution.
Taps are available in 1, 2, 3 and 4 taps versions. The pass-through output is low loss.
Technical Specifications
· Tinned die cast chassis
· Compact dimensions
· Cable fixing via screw clamp for hot pole and shielding door
· Excellent linearity across the entire passband
· Impedance matching to 75 Ohm
· Compatible with return line
Download
Splitters and Taps
ecoCompact Serie

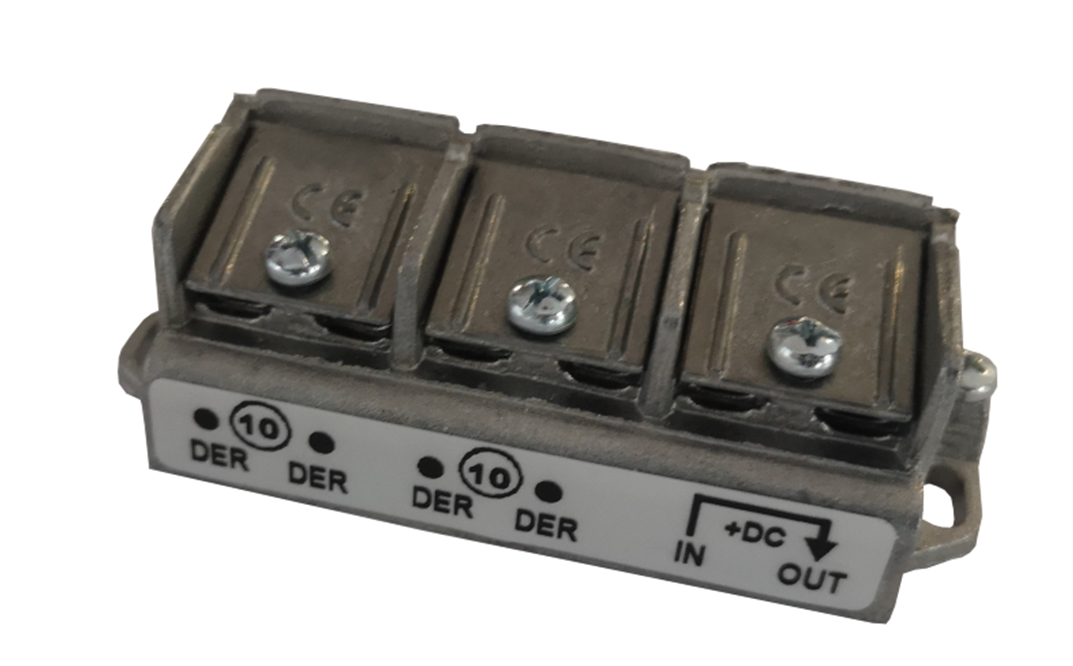

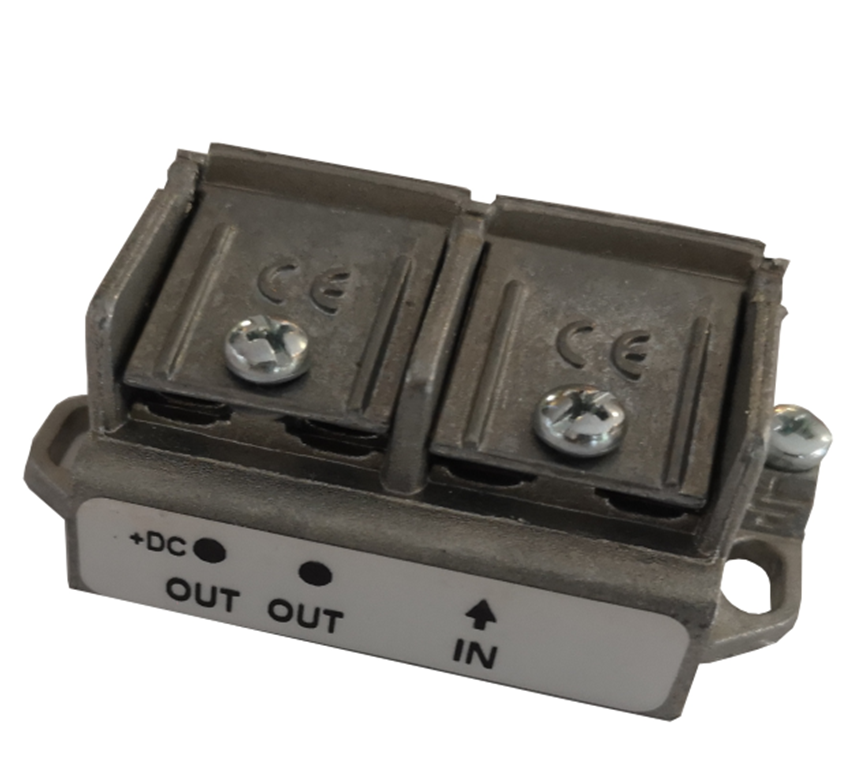

The DI series of splitters and taps are made entirely of die casting and have the coaxial cable fixed via a door clamp and screw for the central hot pole. They have also been specially designed and adapted for digital terrestrial TV signals in order to have high linearity in the band from 4 to 860MHz. The splitters have only one output passing current, while the others are isolated.
Technical Specifications
· Die cast chassis
· Compact dimensions
· Cable fixing via screw clamp for hot pole and shielding door
· Excellent linearity across the entire passband
Download
