Programmable Amplifiers

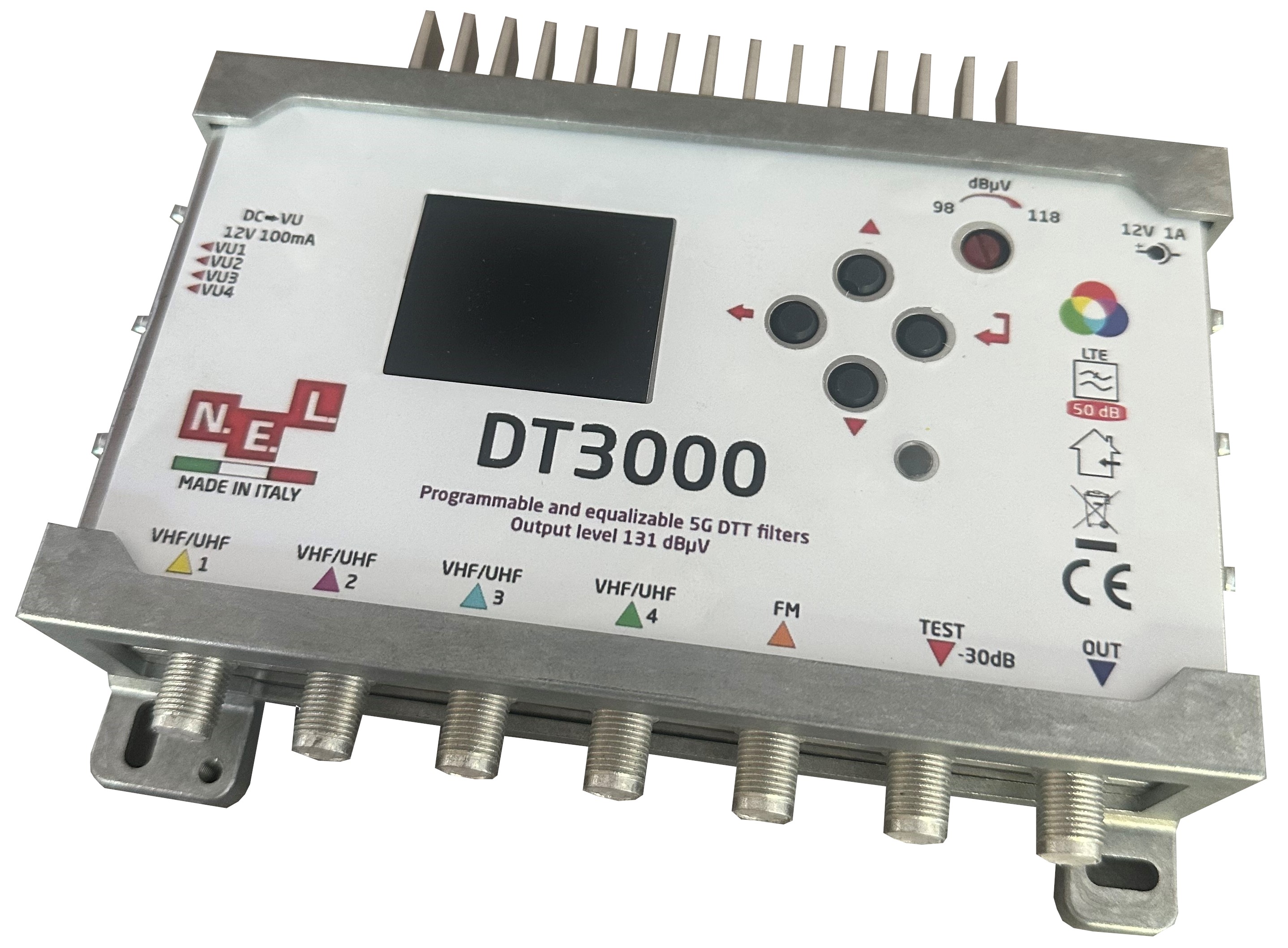

DT3000

Thanks to years of experience in hardware and software design for programmable amplifiers, the DT3000 was born. Thanks to its impressive output power, it is capable of serving the most complex systems, perfectly balancing signals. It boasts the highest LTE filtering performance on a programmable amplifier in the downlink band, with 50 dB of attenuation in the 5G band and 60 dB in the 4G band.

Each input is also equipped with a switchable low-noise preamplifier to ensure the best possible output quality. To further optimize signals, each individual filter corresponding to a MUX can be narrowed or widened in 0.1 MHz steps.

Programming is performed via four buttons, while the display is a 1.8" TFT color LCD.

The device operates with the supplied 12V 1A external power supply with a 2.1mm connector.

Shielding is provided by a treated steel chassis, and heat dissipation occurs via two large heat sinks. It can be mounted to a wall using two sturdy die-cast brackets.

Technical Specifications

· 32 programmable and equalizable digital filters

· 4 VHF/UHF inputs with single automatic scan

· 1 input for FM activable with gain of -5-10-25dB

· Output distortion level: 131dBµV (IM3 –35dBc)

· LTE filters with 50dB attenuation

· Channel Spy function

· Spectrogram function

· Preamplifiers on each input

· Input sensitivity: minimum 40dBµV

· Bandwidth adjustment for each MUX

· Instant input level readout

· Output level adjustable manually and from the menu

· Slope/ tilt adjustment

· 12V remote power supply 100mA MAX

· Output conversion up to Channel 69

· Intuitive keypad programming with TFT LCD display

· ESD protection on all inputs

· Strong die-cast chassis

Download

Technical Specifications

· 31 programmable digital filters with ACG

· 4 VHF/UHF inputs with pre amplifiers

· LTE 5G filters
· Reading in real time of channels input level

· Inputs selectivity: minimum 40dBµV

· Intermodulation distortion: 120dBµV (IM3 –35dBc)
· Output level adjustable manually
· Slope setting
· Channel Spy function
· Max remote power 12V 50mA
· Conversion up to channel 69
· Intuitive programming from key-pad with OLED display
· Protection from ESD in all ports
· Powerable remotely through coaxial cable
· Strong die-cast chassis

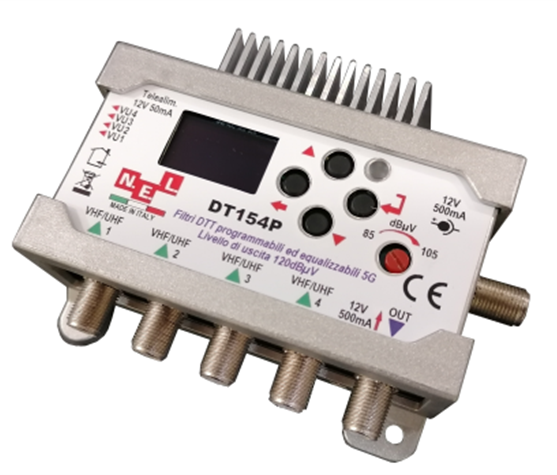

DT154P

The DT154P is the flagship among our programmable devices: compact, intuitive, powerful and with an excellent quality/price ratio, it is the product that has been most successful on the Italian market. Adequate shielding and heat dissipation are guaranteed by a strong chassis and two external heat sinks; it can be firmly fixed to the wall or to a base using two solid die-cast brackets. Programming, very quick and intuitive, takes place via keypad.

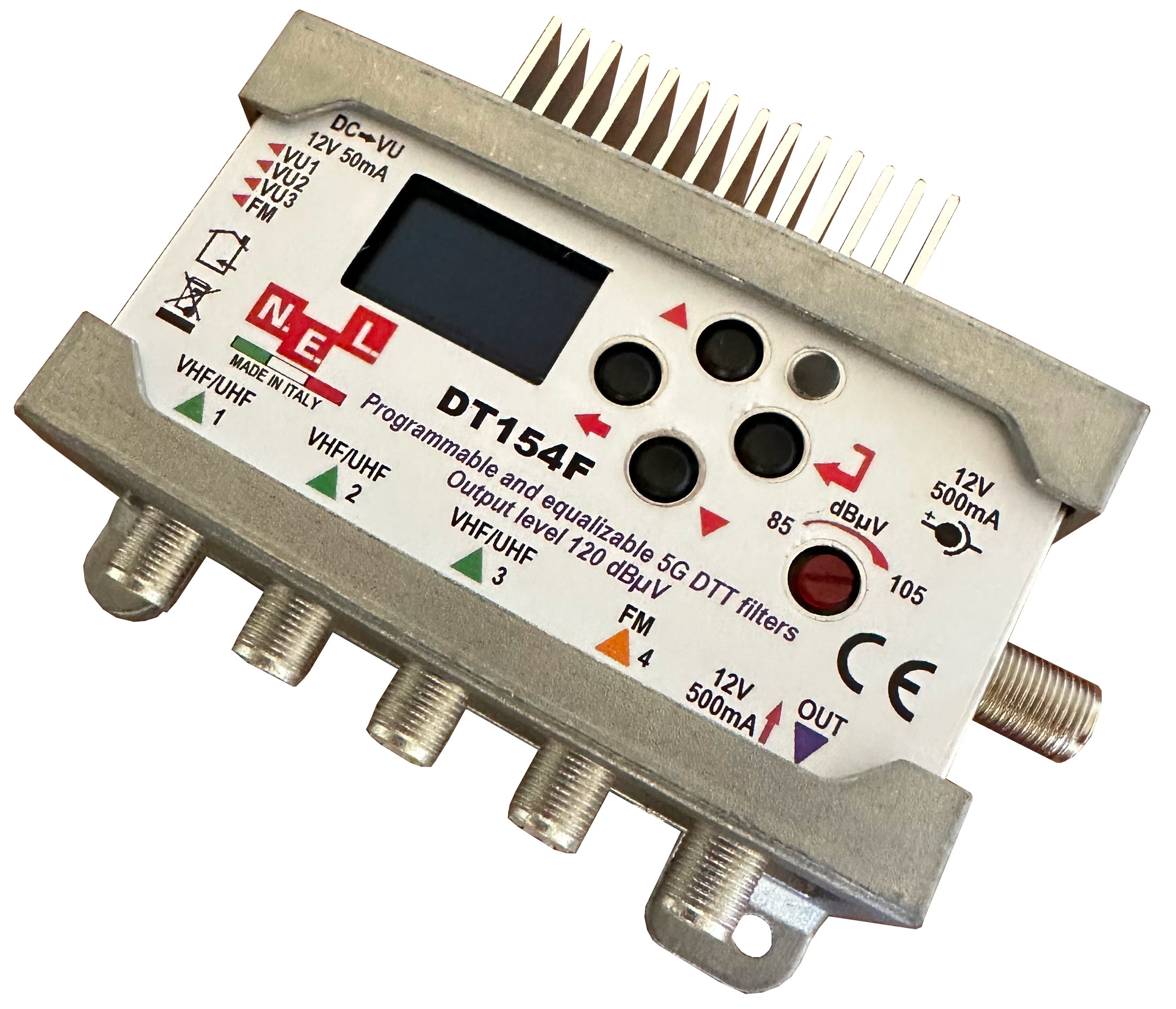

DT154F

The DT154F is the flagship among our programmable devices: compact, intuitive, powerful and with an excellent quality/price ratio, it is the product that has been most successful on the foreign market, thanks to the presence of an FM input. Adequate shielding and heat dissipation are guaranteed by a strong chassis and two external heat sinks; it can be firmly fixed to the wall or to a base using two solid die-cast brackets. Programming, very quick and intuitive, takes place via keypad.

Technical Specifications

· 31 programmable digital filters with ACG

· 3 VHF/UHF inputs with pre amplifiers

· 1 input for FM activable with gain of 0-15dB

· LTE 5G filters
· Reading in real time of channels input level

· Inputs selectivity: minimum 40dBµV

Download

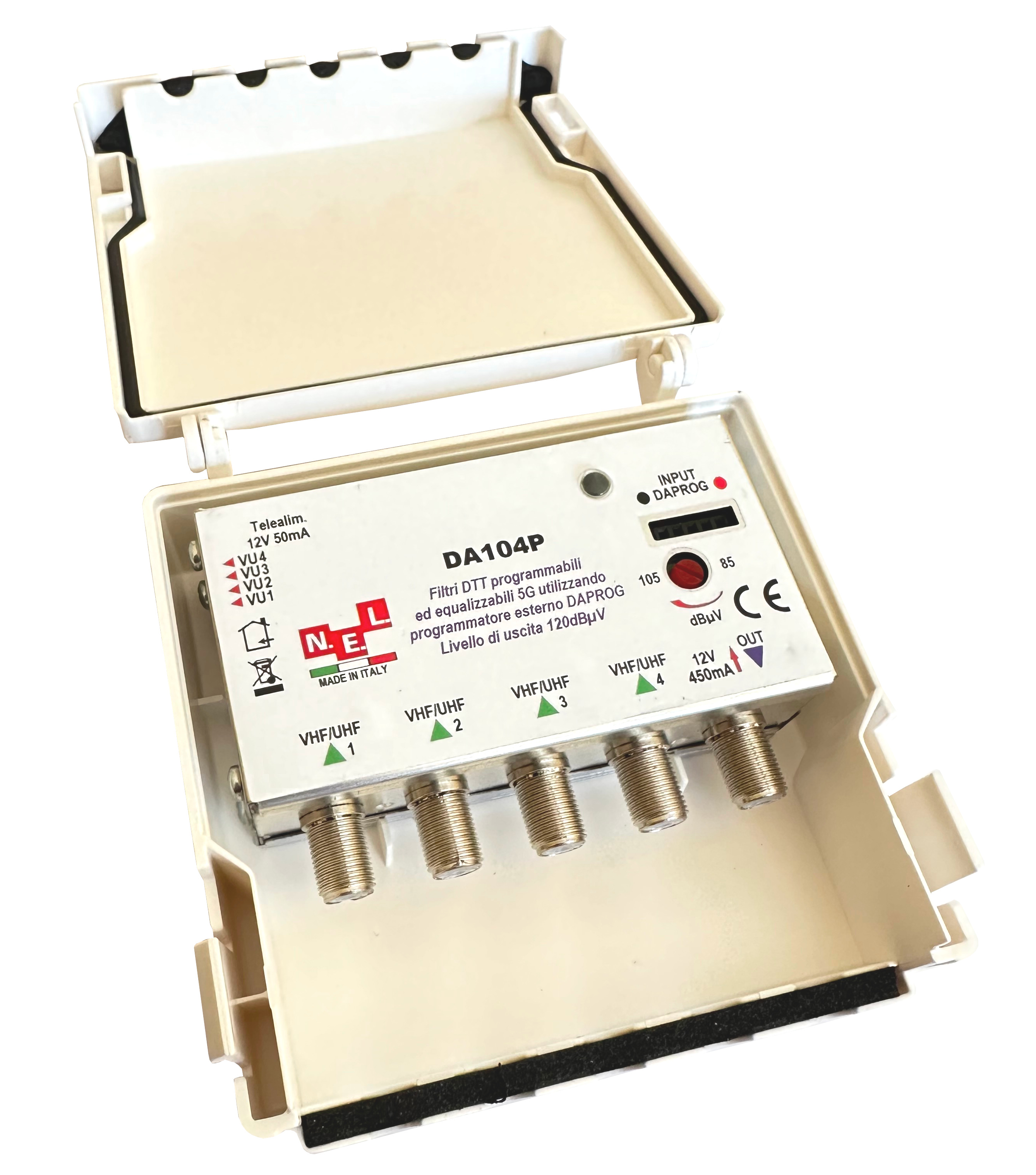

DA104P

The mast programmable amplifiers were created to satisfy the requests of our customers who sometimes require an outdoor product with similar characteristics to the well established DT154P. Adequate shielding and heat dissipation are guaranteed by a robust stainless steel chassis and an external heat sink. The ABS box with IP53 protection rating, combined with the galvanized steel fixing kit, ensure long-lasting fixing and maximum protection from external atmospheric agents. The DA104P version must be programmed using the DAPROG programmer, in this way the same graphic interface and commands as the DT154P are guaranteed, with the sole limitation of a maximum of 16 insertable MUXes. The item KDA104P includes the programmable device and its 12V power supply.

Technical Specifications

· 16 programmable digital filters with ACG

· 4 VHF/UHF inputs with pre amplifiers
· LTE 5G filters
· Reading in real time of channels input level

· Inputs selectivity: minimum 40dBµV

· Intermodulation distortion: 120dBµV
· Output level adjustable manually
· Slope setting
· Channel Spy function
· Max remote power 12V 50mA
· Conversion up to channel 69
· Powerable remotely through coaxial cable
· Protection from ESD in all ports
· Resistant ABS case with IP53 protection for outdoor installation

Download

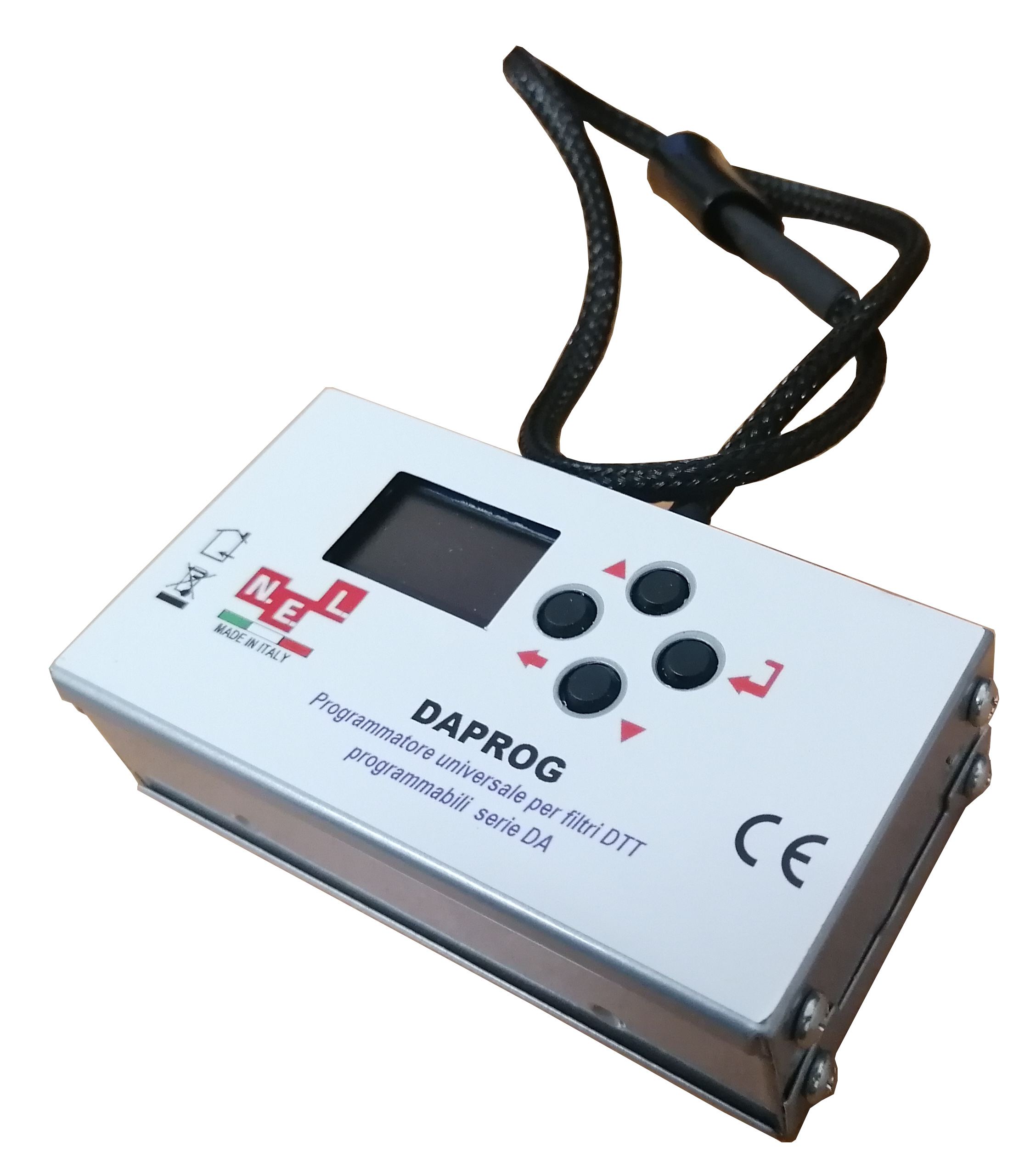

DAPROG

The DAPROG programmer is essential for programming the DA104P mast amplifier. Made of a strong stove-painted steel chassis, it allows, via the connection cable, to interface with the DA104P and carry out all the programming and exploit the functions as with a DT154P. Once programming is complete, simply disconnect the DAPROG and keep it for the next programming.

Technical Specifications

· OLED display and key-pad for programming

· Strong painted die cast chassis

· 5-pin connector with protective ABS cap

Download

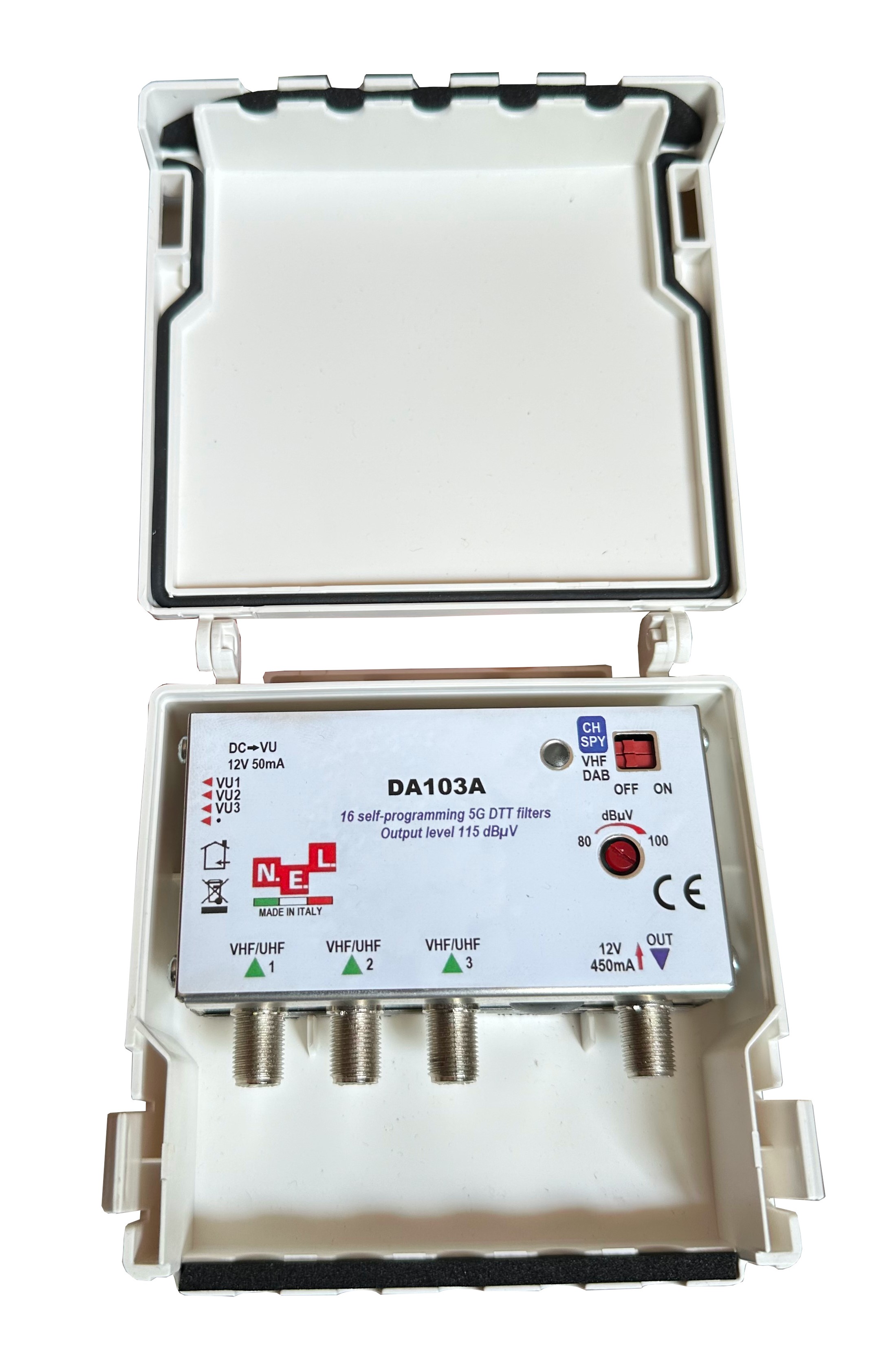

DA103A

The self-programming mast programmable amplifiers were created to satisfy the requests of our customers who sometimes need an outdoor product that allows quick and professional installation, maintaining an optimal quality/price ratio. Adequate shielding and heat dissipation are guaranteed by a robust stainless steel chassis and an external heat sink. The ABS box with IP53 protection rating, combined with the galvanized steel fixing kit, ensure long-lasting fixing and maximum protection from external atmospheric agents. The DA103A version is self-programming, by powering it via the output connector, it enters autoscan mode and up to 31 MUX will be recorded. Is given, by selecting the proper switch, the possibility of activating the CHANNEL SPY function, which allows to scan daily all inputs UHF signals, without interruption of service, performing a dual function of activating and switching off the indivual MUXs, within the limit of the 31 available MUXs, depending on what is transmitted by the repeaters. The item KDA103A includes the programmable device and its 12V power supply.

Technical Specifications

· 31 programmable digital filters with ACG

· 3 VHF/UHF inputs with one automatic scan

· Preamplifiers on all inputs

· Inputs sensitivity: minimum 40dBµV

· Channel Spy function

· LTE 5G filters
· Intermodulation distortion: 115dBµV
· Output level adjustable manually
· Max remote power 12V 50mA
· Powerable remotely through coaxial cable
· Protection from ESD in all ports
· Resistant ABS case with IP53 protection for outdoor installation

Download
