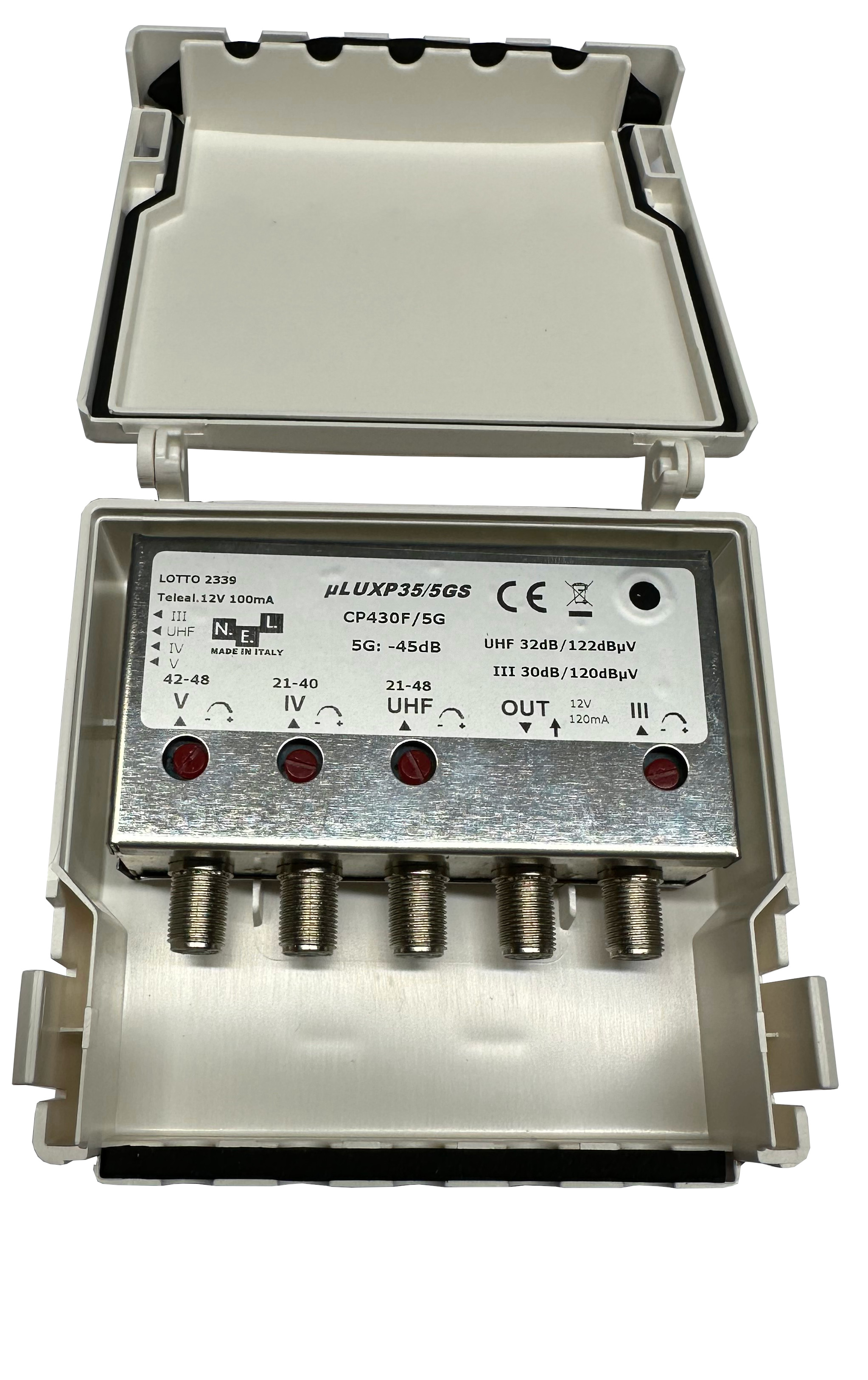

µLUXP Serie
The µLUXP serie of mast amplifiers (dedicated to small and medium-sized systems) is completely similar to the µLUX series with LTE 5G SUPER filter. The logarithmic versions (CP424F/5G and CP434F/5G) are instead equipped with a UHF-5G SUPER electronically selected LTE filter so as to be able to exploit the entire UHF band up to Ch 69. In all versions, the amplification adjustment is guaranteed by professional 20dB attenuators; The LED is also always available, which allows you to quickly check whether the amplifier is turned on. The external chassis in UV-resistant ABS, hermetically sealed with gasket, guarantees maximum insulation from atmospheric agents. Fixing to the pole is to be carried out using the professional clamp supplied.
Technical Specifications
· Low energy consumption
· High PAE (power addition efficiency)
· LTE 5G SUPER filter
· Operation LED
· Wide range of gains: 22dB, 32dB, 43dB
· Output levels: 122 dBµV, 123 dBµV
· All inputs adjustable 0÷20dB and remote powered
· 8 dB equalization in UHF on some models
· ABS case with IP53 protection
Download

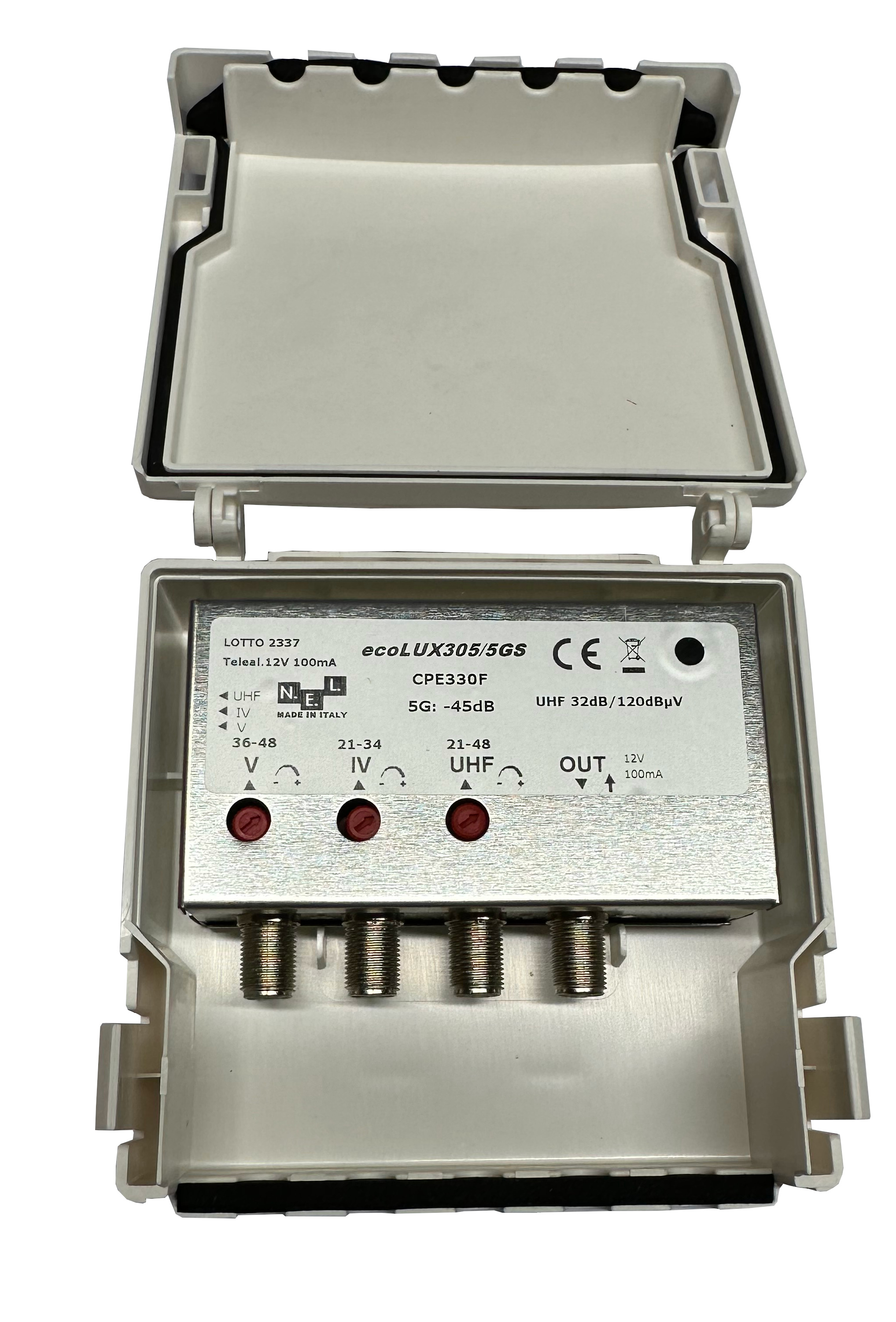

ecoLUX Serie
The ecoLUX serie of mast amplifiers does not have a VHF input. Salient features are the presence of a LTE SUPER filter at –45dB, the operation LED and remote power supply on each input. These devices can be powered by cable with a nominal voltage of 12V. Amplification adjustment is carried out via resistive trimmers. The container is made of treated steel, while the external chassis in UV-resistant ABS with hermetic closure with gasket guarantees maximum insulation from atmospheric agents. The fixing to the pole is to be carried out using the professional clamp supplied.
Technical Specifications
· Low energy consumption
· High PAE (power addition efficiency)
· LTE 5G SUPER filter
· Operation LED
· Wide range of gains: 22dB, 32dB
· Output levels: 120 dBµV
· All inputs adjustable 0÷15dB and remote powered
· ABS case with IP53 protection
Download
