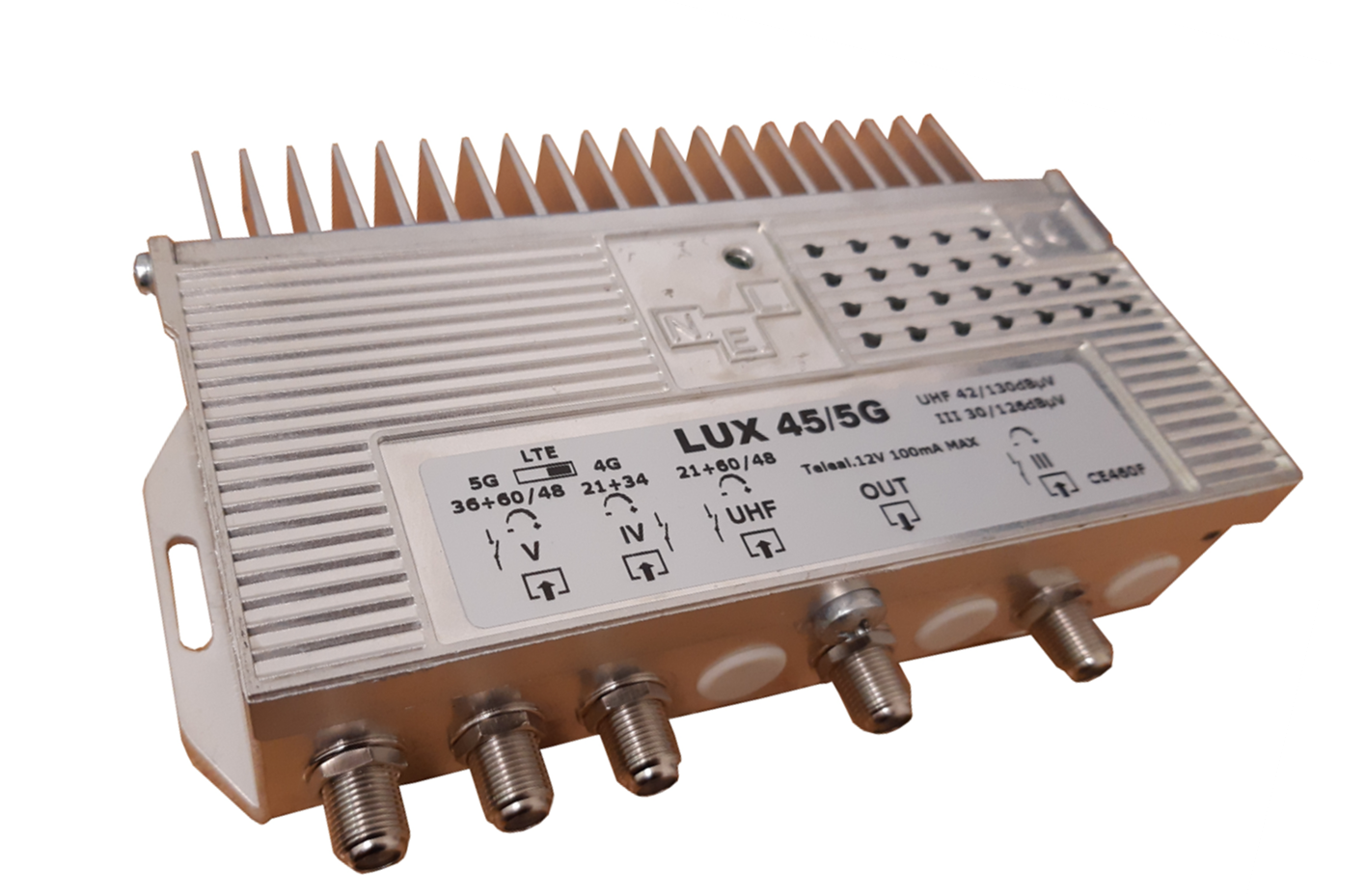

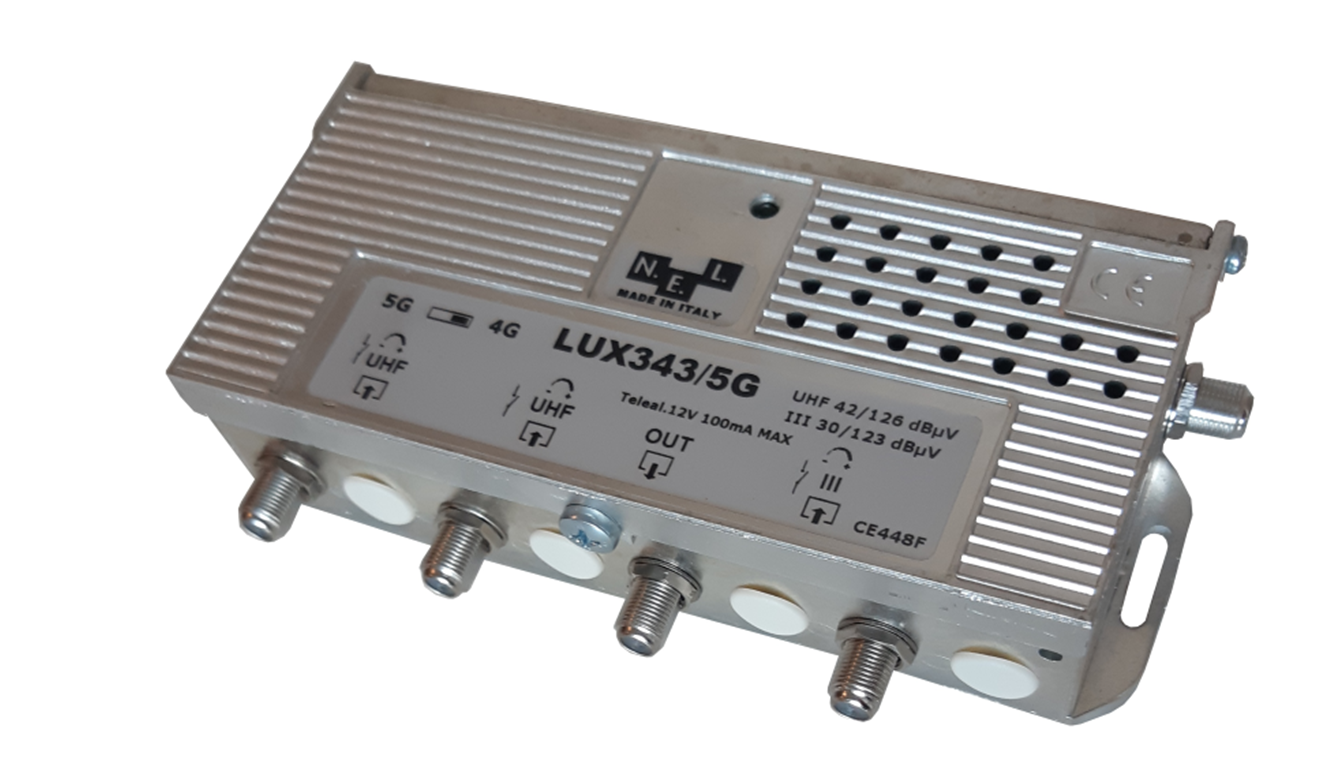

The LUX serie is characterized by high gain and high level, which makes it particularly suitable for DTT signal distribution in medium and large systems. This serie uses high linearity amplifiers which allow an improvement in intermodulation performance with higher efficiency (PAE Power Added Efficiency). On the Exclusive versions the LTE filter can be switched from UHF (up to Ch 69) to 5G super (up to Ch 48). If activated on 5G, as the filter is highly selective, the band of channels from 49 to 69 is reduced by 45dB. UHF and BIII amplification are separated on all models; furthermore, the single full band input versions are also available with an 8dB equalizer (tilt) in UHF. Maximum shielding is guaranteed by the die cast chassis.

· Low energy consumption

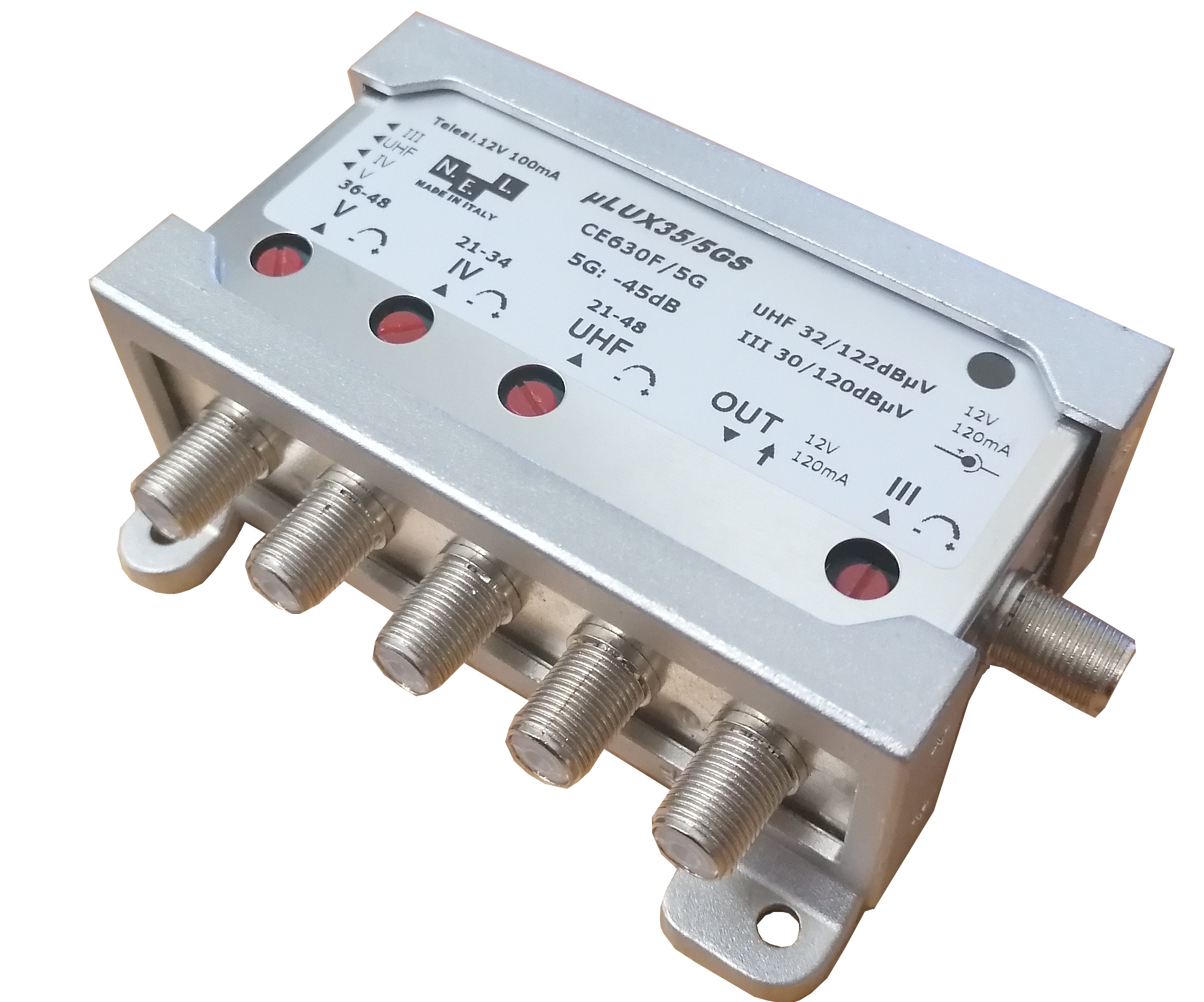

A peculiar feature of the µLUX serie is represented by the very small size of the chassis made of strong tin-plated steel equipped with two elegant die cast brackets. All versions are equipped with an external power supply with 12V 500mA F connector, but also include the possibility of being remote powered from the output (OUT) via coaxial cable. The linearity of the amplifiers, 122 and 123dBµV, is achieved with particular design techniques that allow the absorption of low current (I=120mA at 12V). The remote power supply, selectable via dip-switch, allows you to power additional 12V loads to the antennas with a maximum current of 100mA. The µLUX amplifiers are equipped with a fixed LTE 5G SUPER filter. The logarithmic versions are instead equipped with a UHF-5G SUPER electronically selected LTE filter so that they can possibly exploit the entire UHF band up to Ch 69.
